An ultralight Advanced-grade composite frame and fork make for snappy acceleration, while internal cable routing streamlines your cockpit and makes room for your must-have accessories. And the redesigned geometry puts you in a more aggressive position, increases traction and stability, and allows more control at speed and on descents.





The Contact XR D-Fuse handlebar features a 5-degree back sweep and flare drop for comfortable and ergonomic grip. Select models also feature the Contact D-Fuse seatpost and one is equipped with a dropper post. Or swap out for your preferred set-up. These proprietary D-Fuse components absorb bumps and reduce vibrations, ensuring less fatigue and more fun on those epic rides.

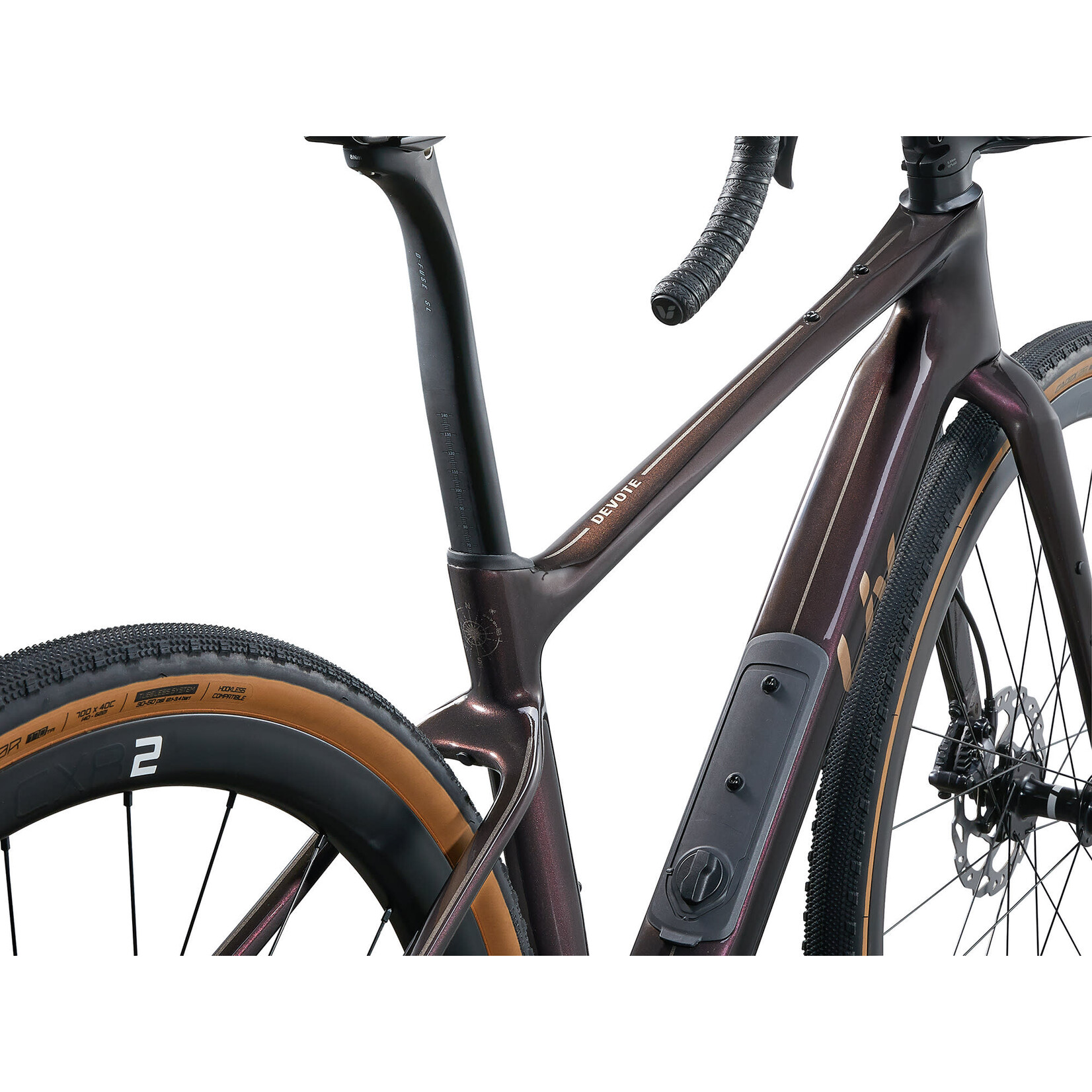

Adapt to the route with the flip chip – dropout, which lets you adjust your wheelbase length and rear-wheel tire clearance. Go shorter for responsive handling and quick acceleration. Go longer for added stability plus clearance for larger tires and extra traction. Plus, the integrated down tube storage lets you stash a multi-tool or extra fuel, so nothing’s slowing you down.



SIZING GUIDE

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.

XS: 150 - 163cm / 4'11" - 5'4"

S: 158 - 169cm / 5'2" - 5'6"

M: 164 - 175cm / 5'4" - 5'9"

L: 170 - 181cm / 5'7" - 5'11"



• Sizes - XS, S, M, L
• Colours - Tiger Red
• Frame - Advanced-grade composite, 12x142mm thru-axle, flat mount disc, flip chip – dropout, integrated down tube storage, integrated cable routing
• Fork - Advanced-grade composite, full-composite OverDrive steerer, stainless steel bearings, 12mm thru-axle, flat mount disc
• Shock - N/A
• Handlebar - Giant Contact XR D-Fuse, 31.8mm, 5-degree back sweep, flare drop, alloy XS: 400mm, S: 400mm, M: 420mm, L: 420mm
• Stem - Giant Contact AeroLight, -10 degree, alloy XS: 50mm, S: 60mm, M: 70mm, L: 80mm
• Seatpost - Giant Contact SL D-Fuse, composite, -5/+15mm offset
• Saddle - Liv Approach
• Pedals - PEDALS NOT SUPPLIED

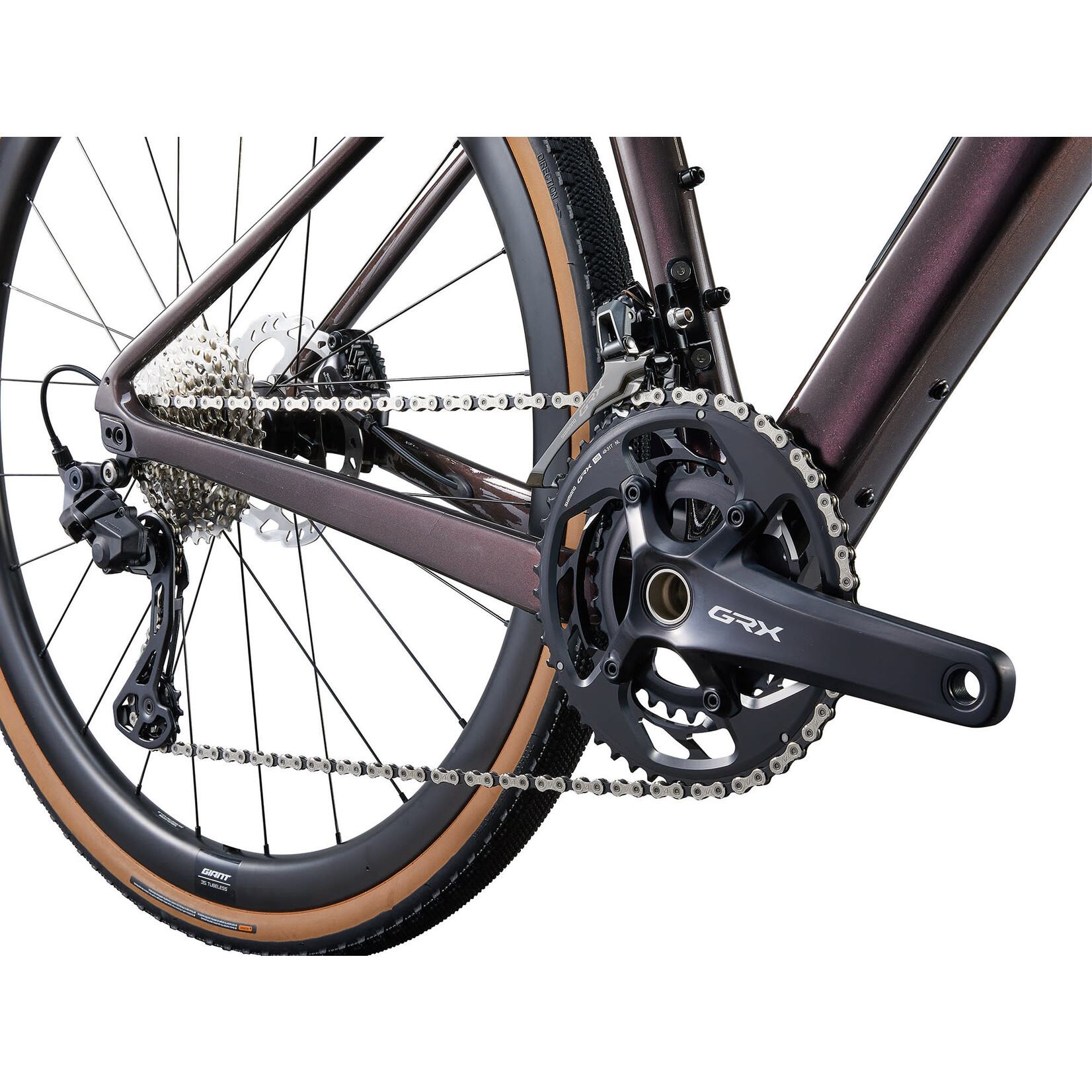

• Shifters - Shimano GRX RX-820, 2x12
• Front Derailleur - Shimano GRX RX-820
• Rear Derailleur - Shimano GRX RX-820
• Brakes - Shimano GRX RX-820 hydraulic, Shimano RT-70 rotors [F]160mm, [R]160mm
• Brake Levers - Shimano GRX RX-820 hydraulic
• Cassette - Shimano CS-HG710, 12-speed, 11x36
• Chain - KMC X12L-1
• Crankset - Shimano GRX FC-RX820, 31/48 XS: 165mm, S: 170mm, M: 172.5mm, L: 172.5mm
• Bottom Bracket - Shimano, press fit
• Rims - Giant CXR 2 Carbon Disc WheelSystem, [F] 35mm, [R] 35mm
• Hubs - [F] Giant alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, 3-pawl driver, CenterLock, 12mm thru-axle
• Spokes - Sapim Sprint
• Tyres - CADEX AR, 700x40c, tubeless
• Extras - 53mm max tyre size in long flip chip position, 45mm max tyre size in short flip chip position, factory tubeless set up, ISC clamp, integrated down tube storage bag
• Max Chainring Size - SRAM Wide 2x 43-30, 1x 44T. Shimano GRX 2x 48-31, 1x 42T
