Key Performance Factors

Smart support

The new SyncDrive Core 50Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

Comfort and control

A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.

Full-Color Display

RideDash Evo (on select models) on the handlebar/stem area makes it easy to view ride data including speed, distance, battery level and navigation.

Specifications

• Motor: Giant SyncDrive Core, 50Nm, Powered by Yamaha, PedalPlus 6-sensor technology
• Battery: Giant EnergyPak 600Wh, CO2 Neutral production
• Charger: Giant EnergyPak 4A smart charger
• Controller: Giant RideControl Dash, Smart Assist automatic mode, 5 manual support levels, USB-C (10W)
• Display: Giant RideControl Dash, high-angle visibility, full color LCD display
• Sizes: S, M, L
• Colours: Gloss Cosmos Navy & Matte Copper Coin
• Frame: ALUXX aluminium, monotube, Battery Semi Integrated, low step through design
• Fork: SR Suntour Mobie A32 DS Coil, 63mm travel 100x15mm axle
• Handlebar: Aluminium, 30° back sweep, 31.8x660mm
• Stem: Aluminum angle adjustable stem
• Seatpost: Suspension 30.9x300mm
• Saddle: Selle Royal Essenza Plus
• Pedals: Wellgo C097, PP/ Kraton body, Anti-slip
• Shifters: Shimano Nexus 7-speed RevoShift
• Brakes: Shimano BR-MT200 hydraulic disc, 180mm [F], 160mm [R]
• Brake:  LeversShimano BL-MT200
• Cassette: 18T
• Chain: KMC Z1e HX, e-bike optimised
• Crankset: Aluminium 38T
• Rims: Giant Double Wall Aluminium 622x21

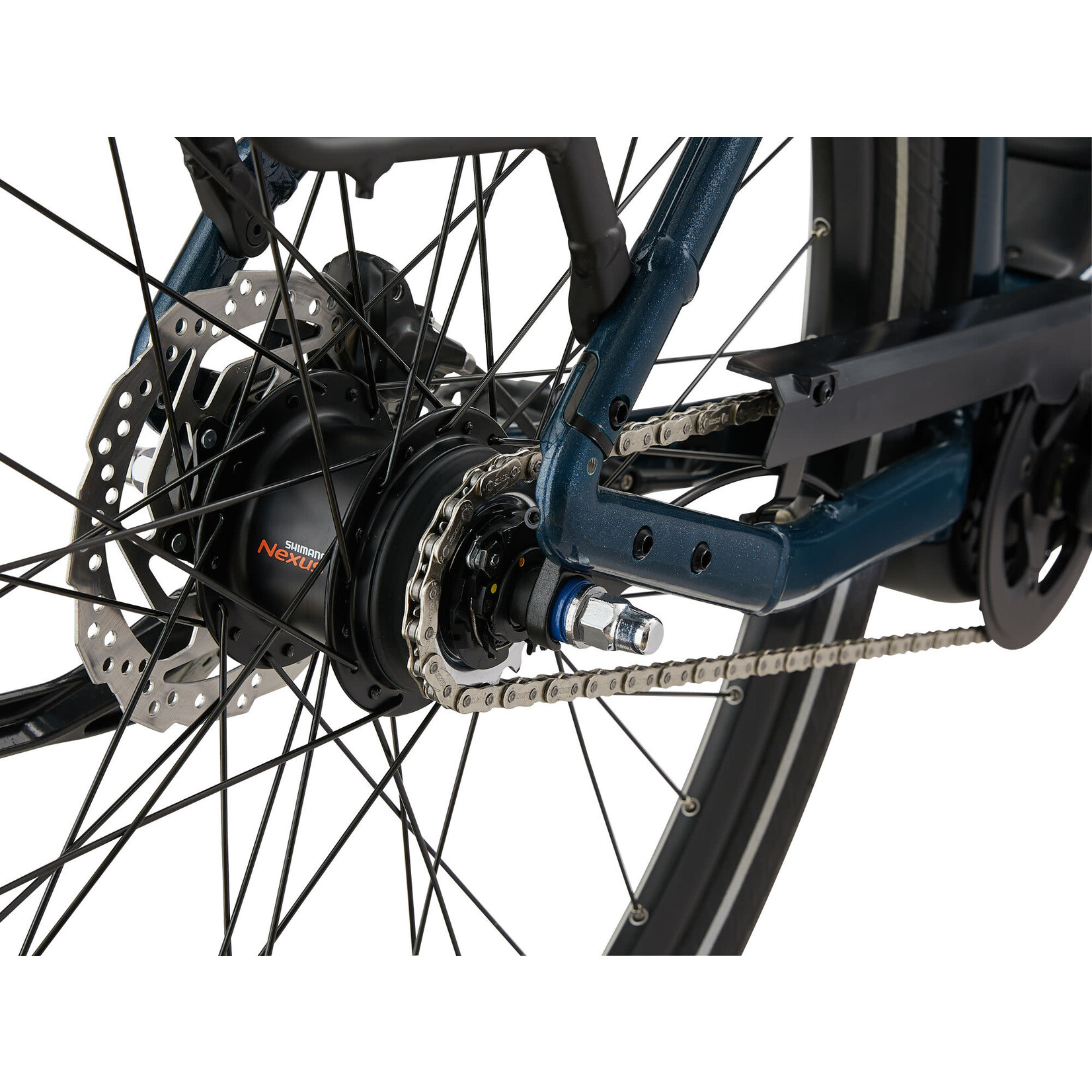

• Hubs: Shimano HB-TC500-15 100x15 [F], Shimano Nexus 7 disc brake [R]
• Spokes: Stainless 14G(2.0mm) [F]Stainless 13-14G(2.3-2.0mm) butted [R]
• Tyres: Schwalbe Big Ben 55-622 Wire Bead w/ reflective stripe
• Extras: KSA18 direct mount kickstand
• All specifications listed are subject to change without notice.

Highlights

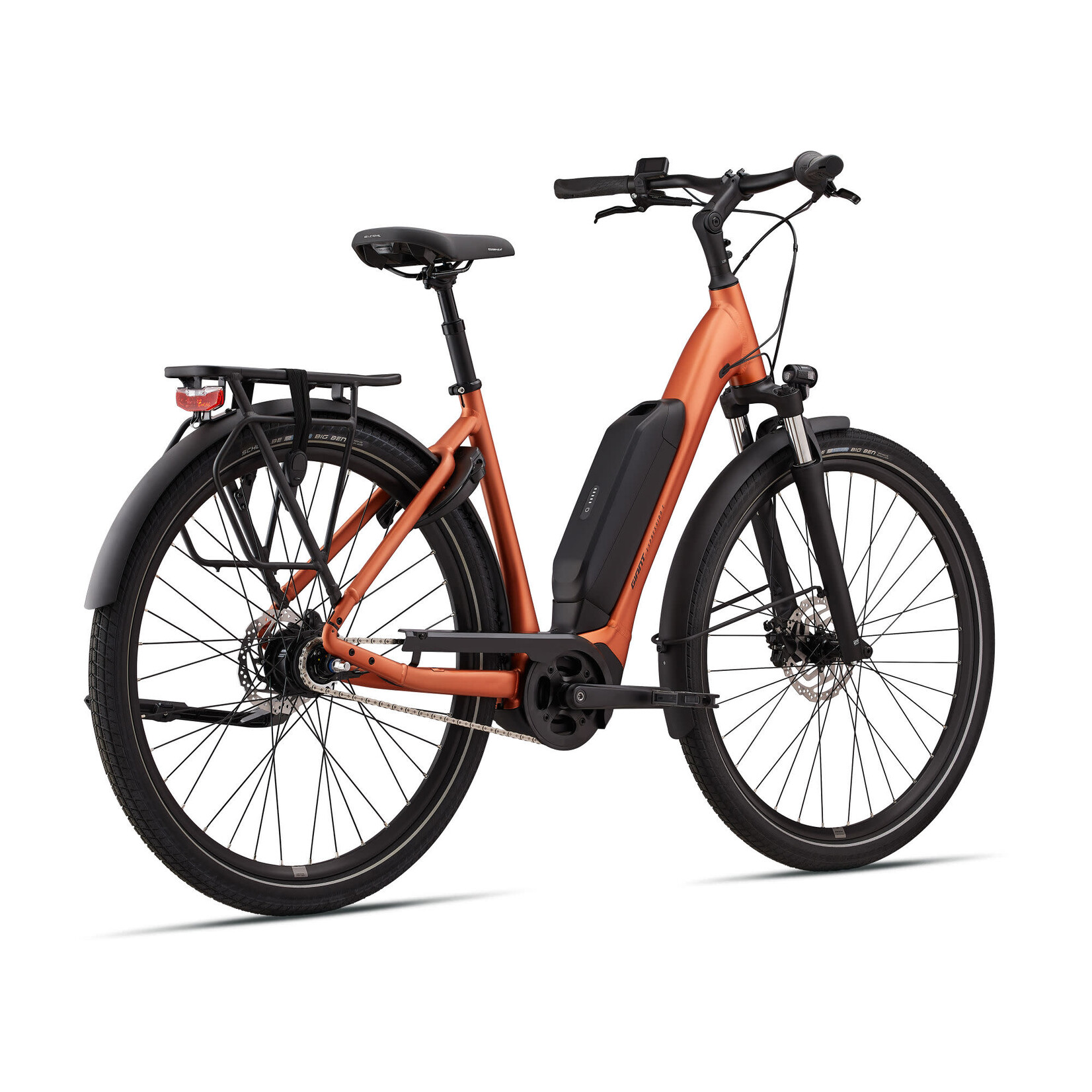

This low-step through E-bike features the new SyncDrive Core, a compact and lightweight motor that’s ideal for commuters and recreational riders. It delivers 50Nm of torque and utilizes Smart Assist technology, which features six sensors including slope detection and an accelerometer to produce the precise amount of power needed at all times. The result is a quiet, natural ride experience. A suspension fork helps smooth out rough roads, and the RideControl Dash full-color display (on select models) makes it easy to keep track of battery level and support mode, along with cycling data like speed and distance.
