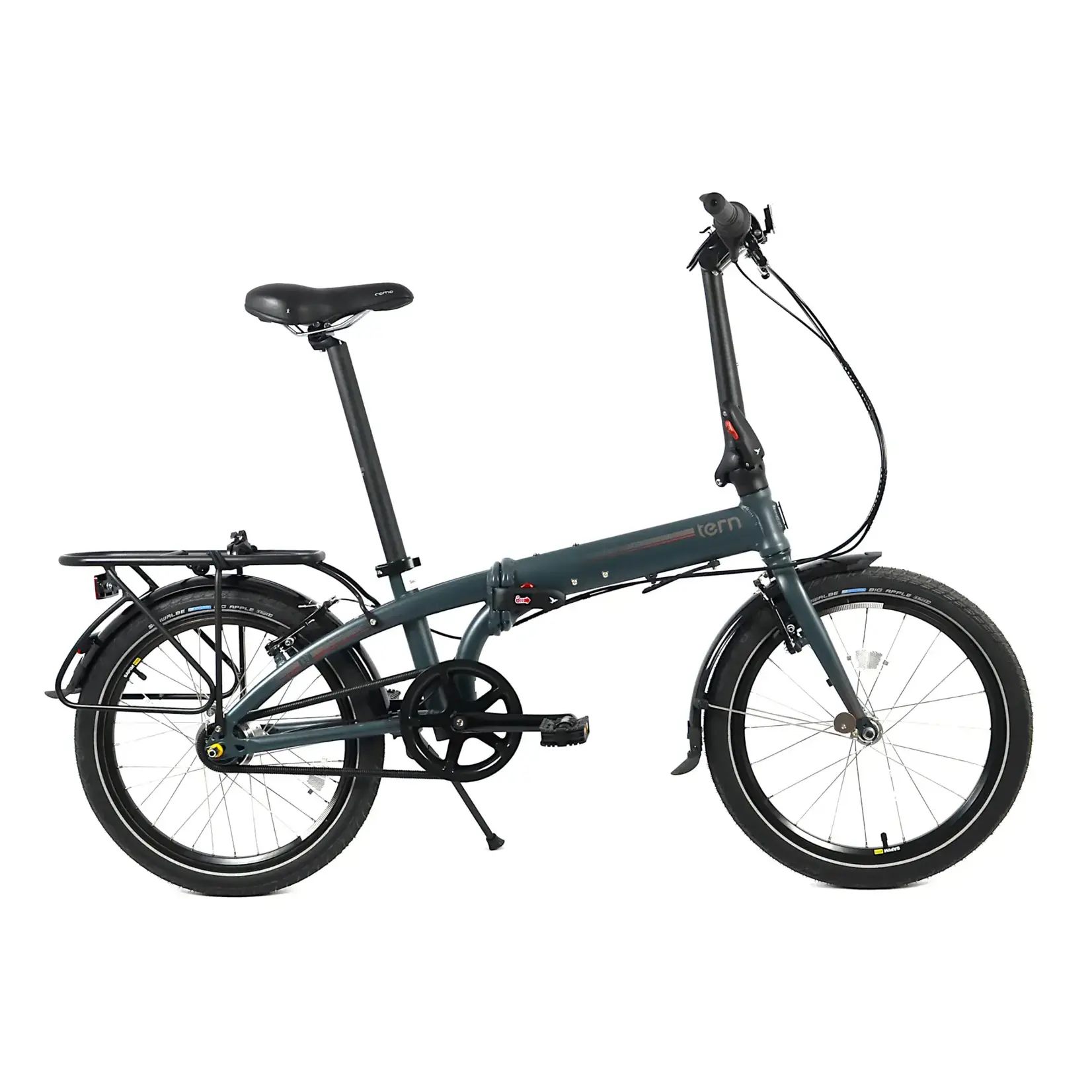

SPECIFICATIONS

• 7-speed internal geared Shimano hub for versatility and low maintenance
• Andros™ handlebar stem for tool-free riding position adjustments on the fly
• FreeDrive™ chain cover protects your clothes from grease and dirt
• Bomb-proof wheels built with Sapim spokes
• Schwalbe Big Apple tires with Kevlar puncture protection
• Fenders for rainy days
• Folds compactly in 10 seconds for storage and transport
• Rear rack and integrated lighting available as options.

GENERAL INFO

• SPEEDS:1 x 7
• WEIGHT: 14.4 kg (31.7 lb)
• GEAR INCHES: 33" - 80" (2.62 - 6.41 m)

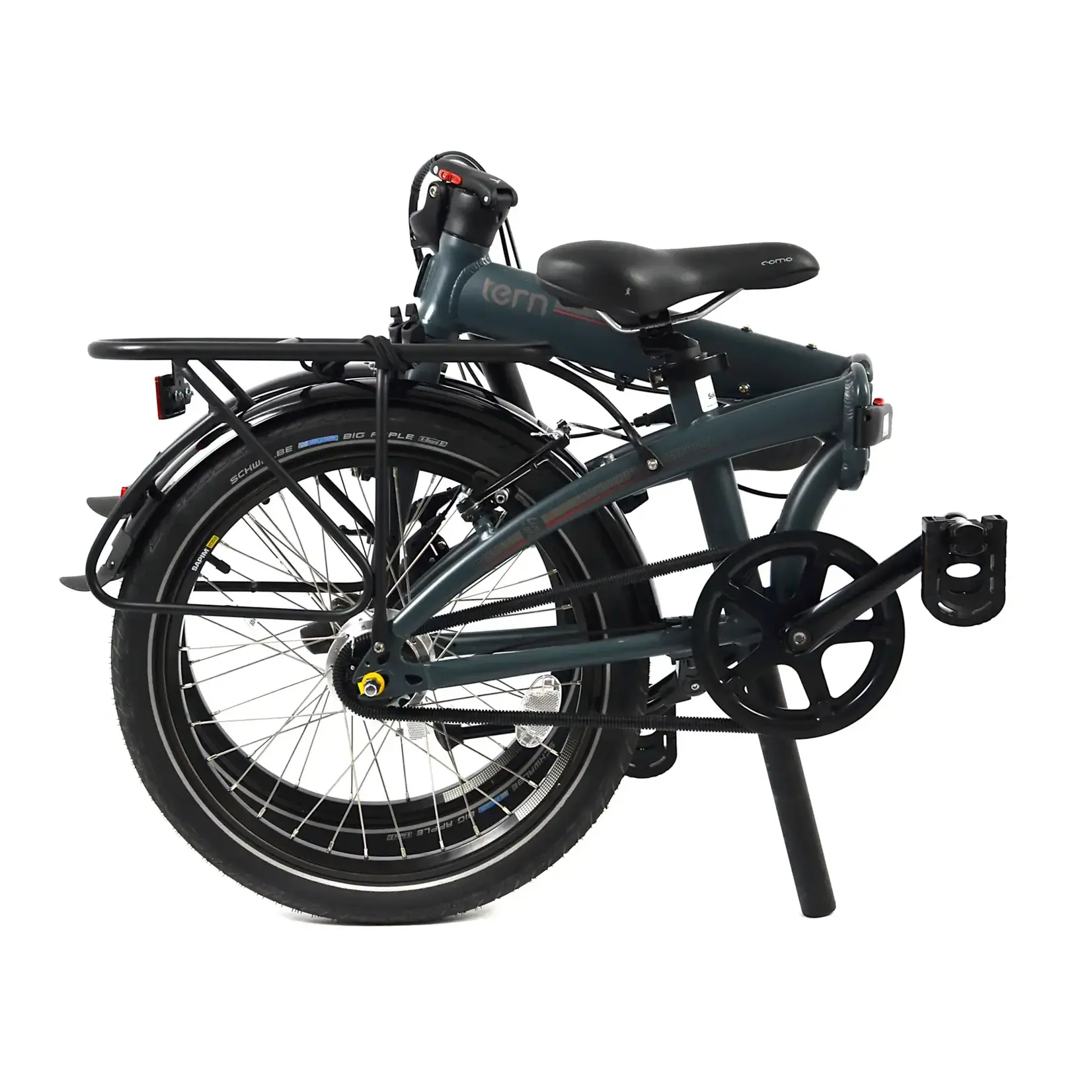

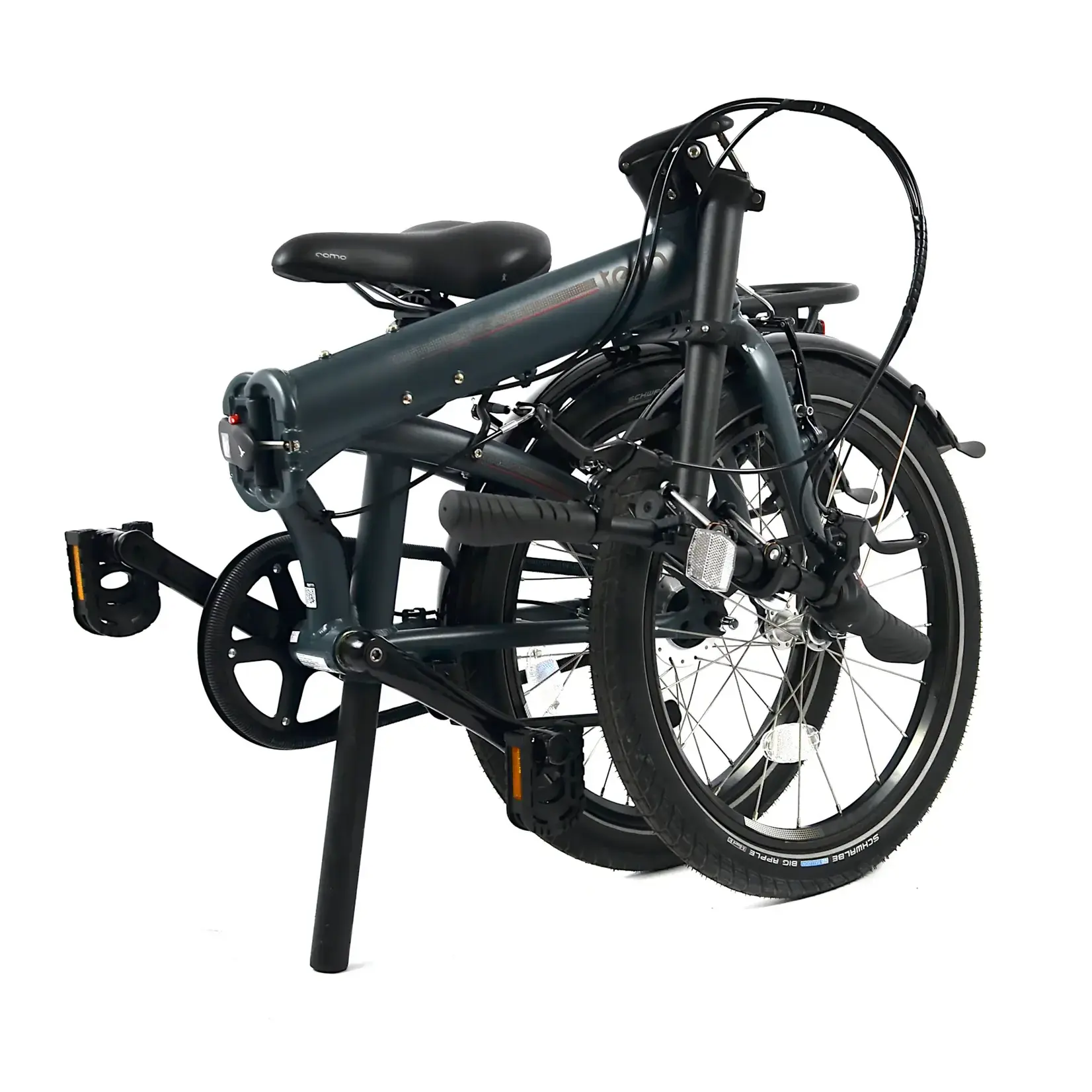

• FOLDING SIZE: 380 × 790 × 720 mm (15 × 31.1 × 28.3 in)
• FOLDING TIME: 10 sec
• FRAME SIZES: One size
• DISTANCE: SEATPOST TO HANDLEBAR: 62 - 69 cm (24.4 - 27.2 in)
• DISTANCE: SADDLE TO PEDAL: 70 - 96 cm (27.6 - 37.8 in)
• SUGGESTED RIDER HEIGHT: 142 - 190 cm (55.9 - 74.8 in)
• MAX GROSS VEHICLE WEIGHT: 120 kg (264.6 lb)
• MAX LOAD WEIGHT: 105 kg (231.5 lb)
• MAX RIDER WEIGHT: 105 kg (231.5 lb)

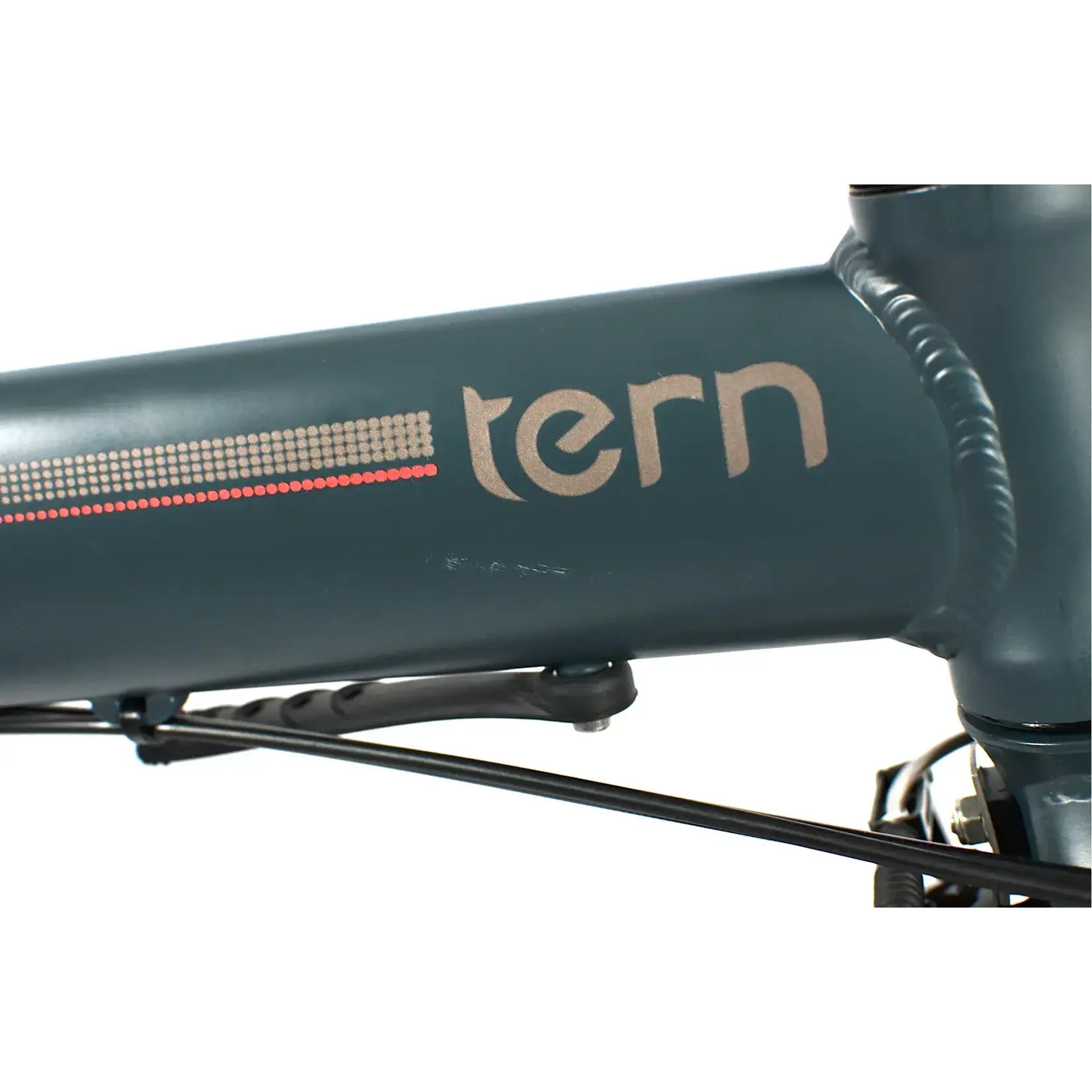

• FRAME: Tern Link, aluminum, OCL Joint, 3 patented technologies
• FORK: Integrated, hi-tensile steel

• COCKPIT
• HANDLEPOST: Tern Physis 3D, 3D forged, 5 patented technologies
• STEM: Tern Andros, adjustable, forged construction, patented technology
• HEADSET: Flux, cartridge bearings, Physis integrated
• HANDLEBAR: Flat bar, 6061-Al, Andros butted
• GRIPS/BAR TAPE: Velo ergonomic, lock-on

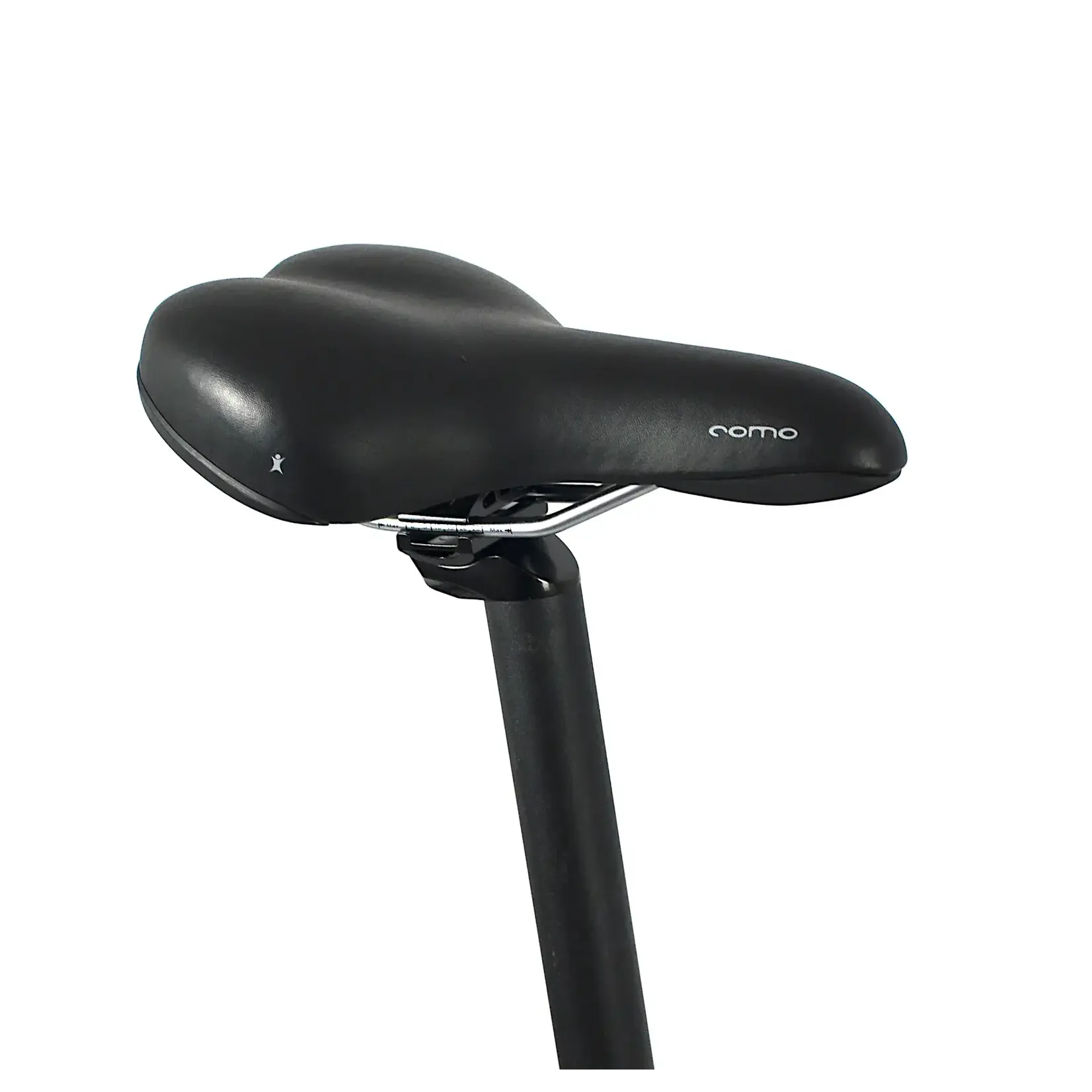

• SADDLE: BioLogic Como DLX
• SEATPOST: SuperOversize, 6061-Al, micro-adjust clamp
• SEATPOST CLAMP: SuperOversize, 6061-Al

• BRAKES
• FRONT BRAKE: V, aluminum, linear spring
• REAR BRAKE: V, aluminum, linear spring
• BRAKE LEVERS: V, aluminum bracket/lever
• BRAKE CABLE & HOUSING: Anti-compression housing, slick cables

• WHEELS
• REAR HUB: Shimano Nexus 7 freewheel
• SPOKES AND NIPPLES: Sapim Leader, stainless steel
• RIMS: Doublewall aluminum

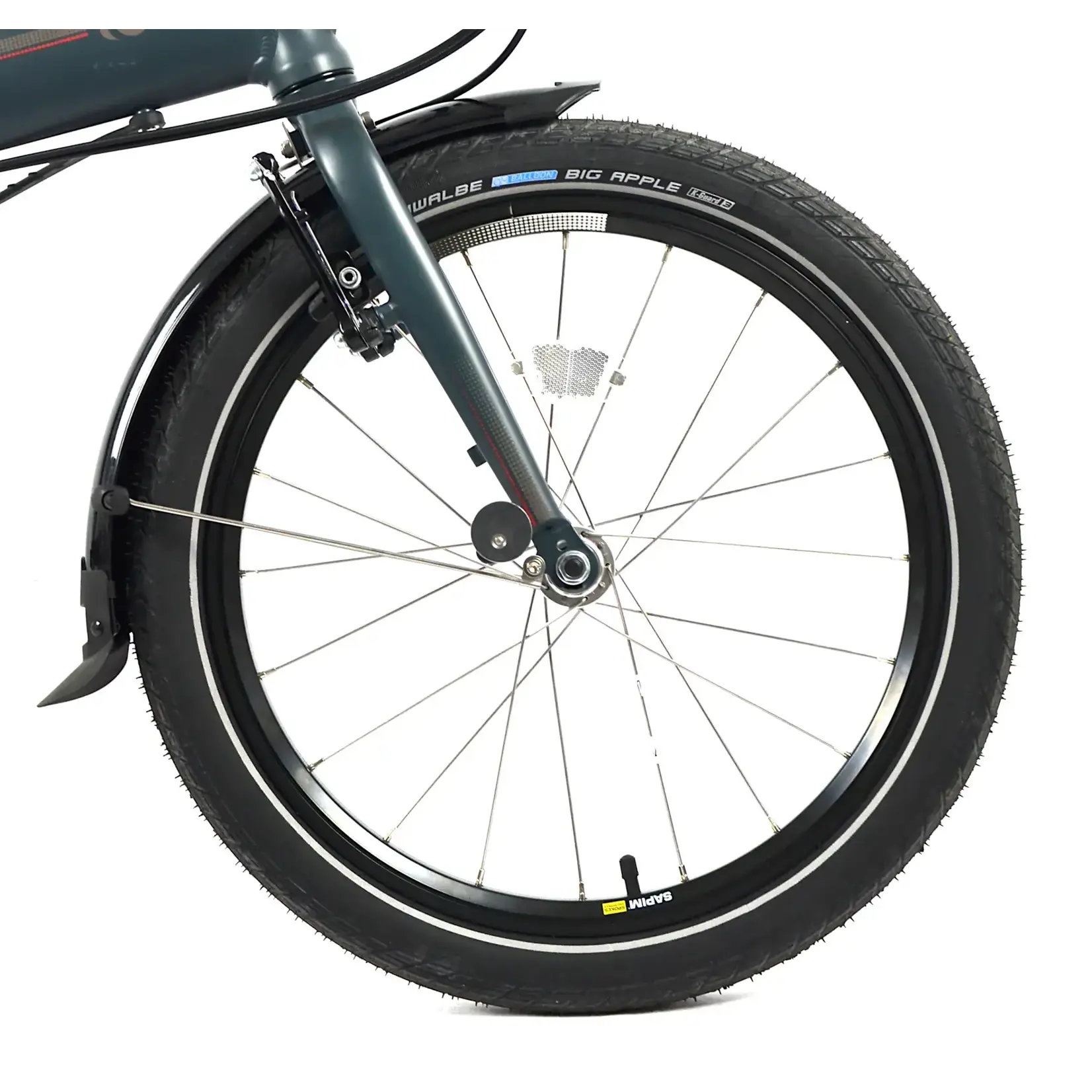

• TYRES: Schwalbe Big Apple, 50-406, puncture protection, Reflex

• TRANSMISSION

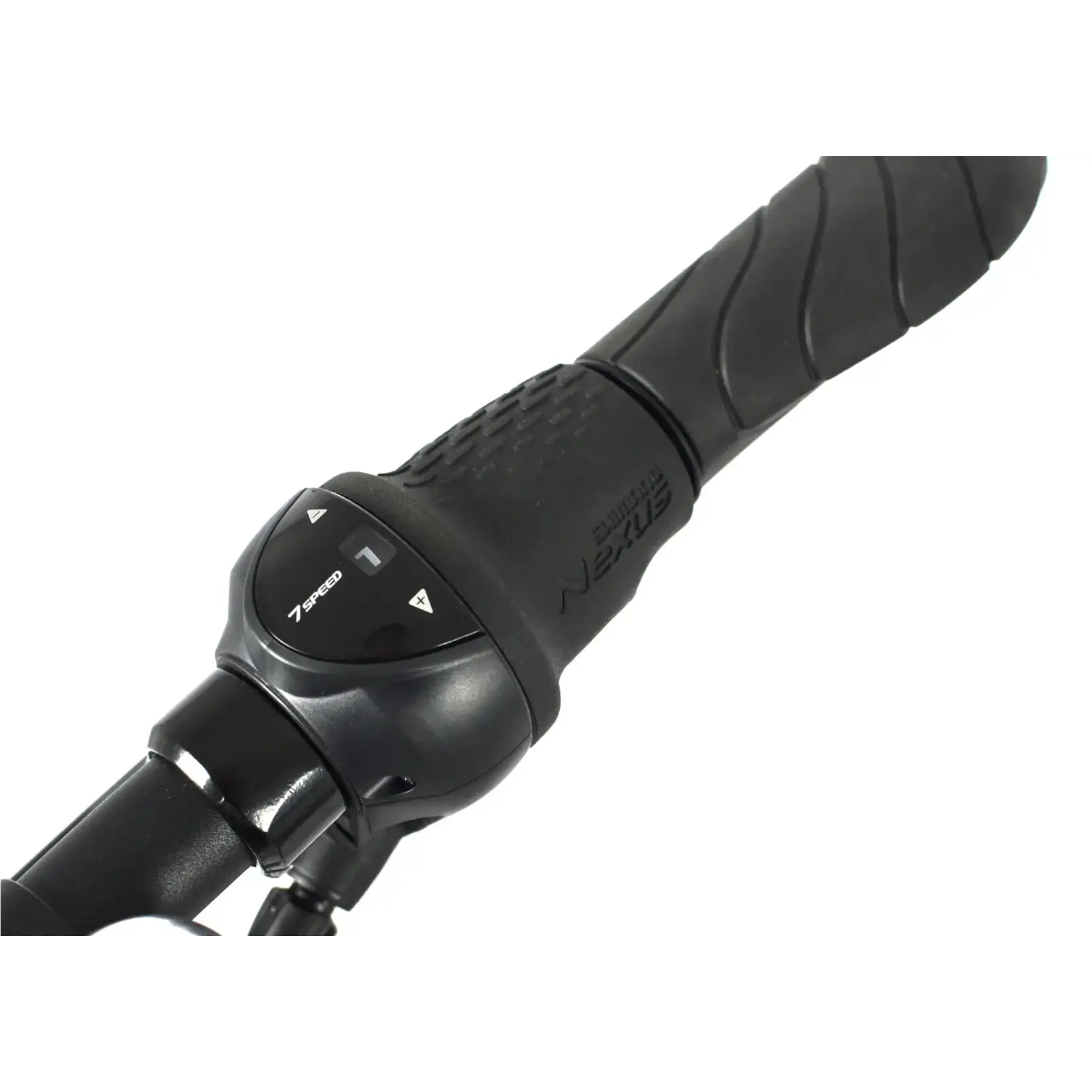

• SHIFTER(S): Shimano Nexus 7 spd
• CRANKSET: Forged 6061 aluminum crank arms, hand-polished
• CASSETTE/FREEWHEEL: 17T
• BOTTOM BRACKET: Cartridge, sealed bearings
• CHAIN: 408H

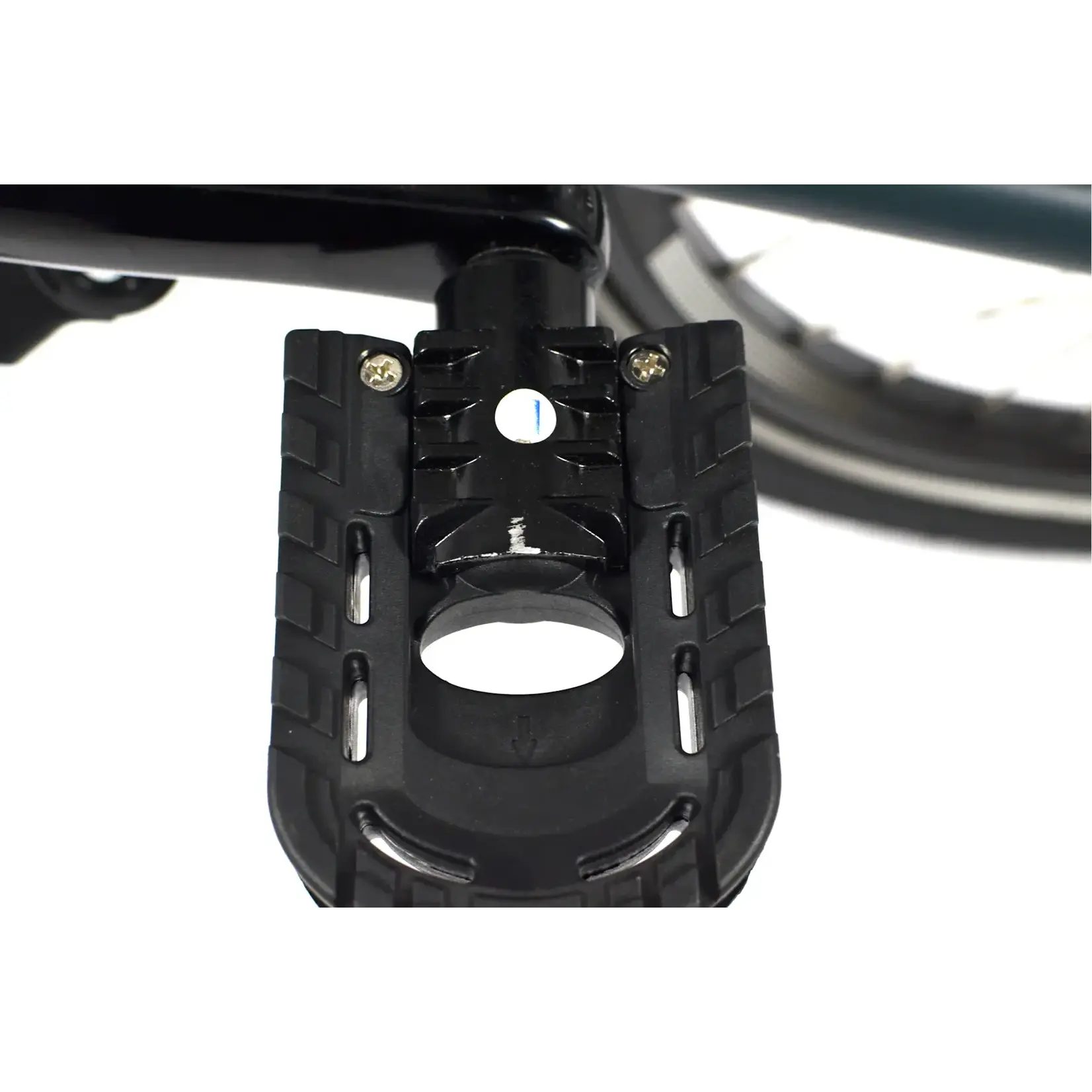

• PEDALS: Folding, alloy body
• SHIFTER CABLE & HOUSING: Shimano

• BELLS & WHISTLES
• BELL: Aluminum

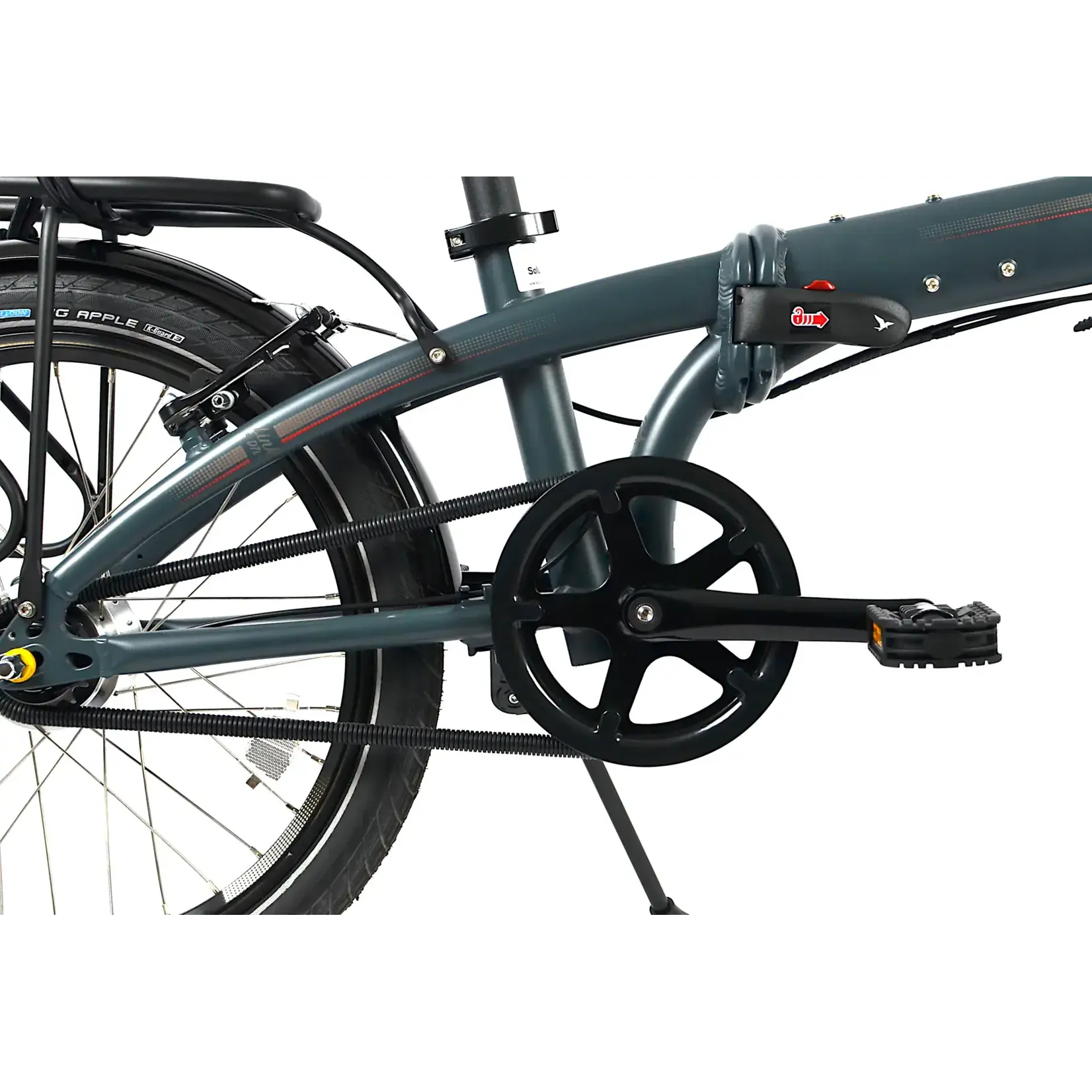

• CHAINGUARD: BioLogic FreeDrive
• KICKSTAND: Deluxe center mount
• CLIP SYSTEM: Magnetix 2.0
• LUGGAGE SOCKET: Yes
• FRONT LIGHT: Opt: Tern Valo 2, integrated, 41 lux/150 lumens
• REAR LIGHT: Opt: Deluxe LED
• FENDERS: RP Chromeplastic, stainless hardware

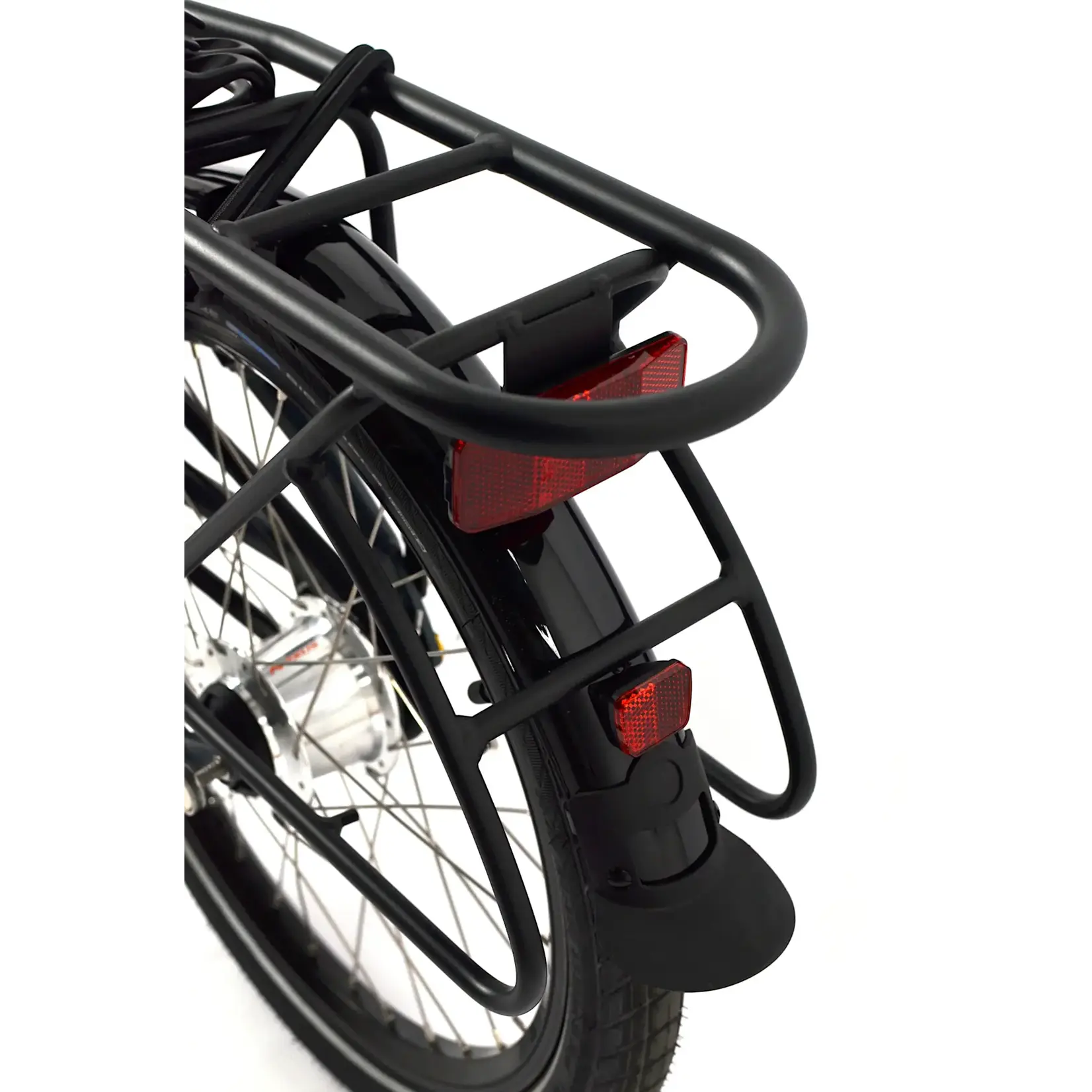

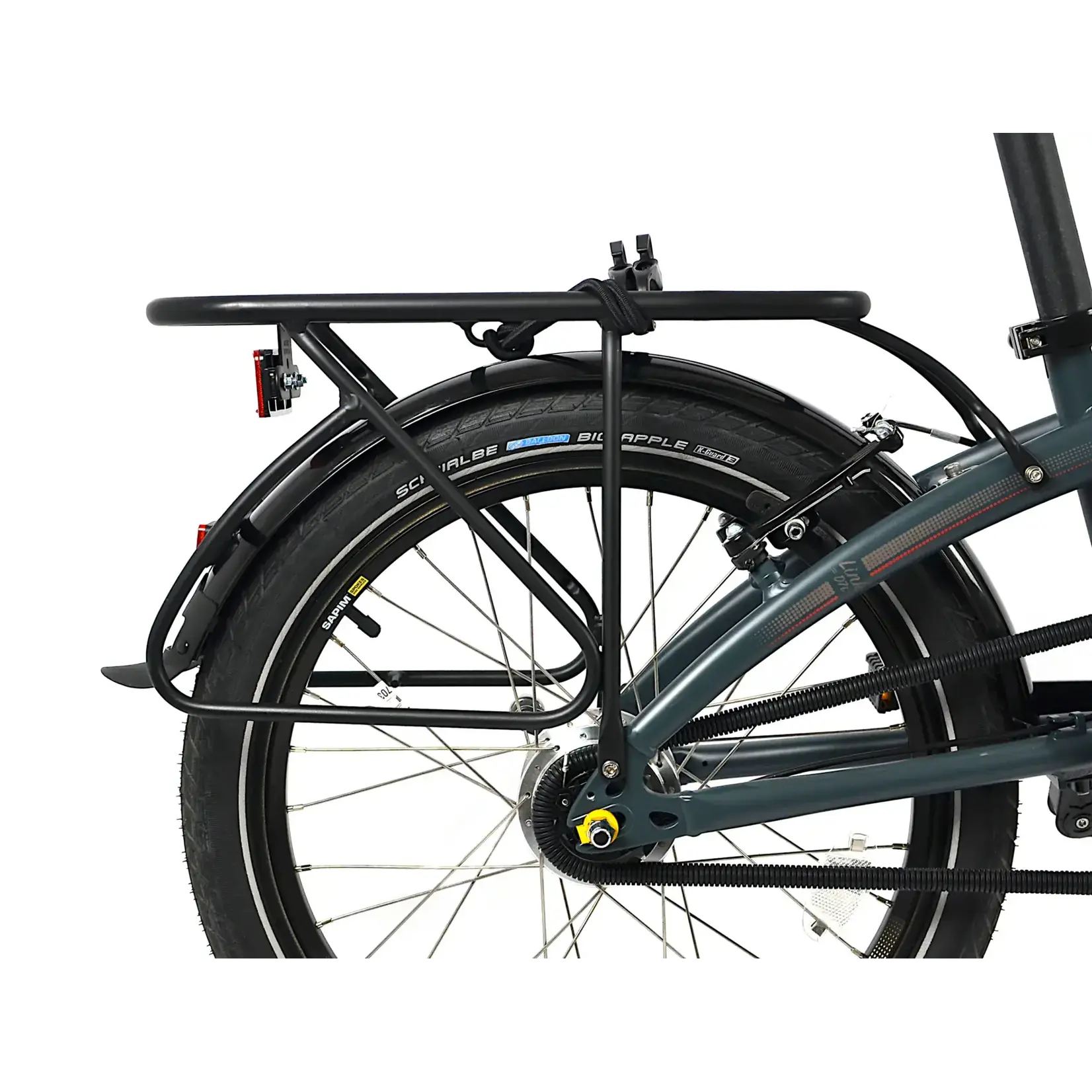

• RACK(S): Opt: Tern Loader Rack
